Accessories for asparagus sorting machines

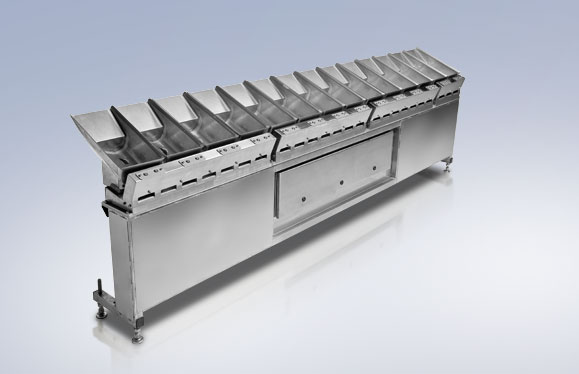

Weighing unit for asparagus

• The quality and weight of each spear are determined by the measurement camera. Individual spears are then bundled according to pre-specified weights and placed in the silos.
• Each asparagus silo is equipped with scales which constantly check the total weight of the bunch
• No bunches which are too light or heavy (the whole bunch is weighed).
• Inclusion of different qualities of asparagus according to your specifications.
• Real-time weight monitoring: The total weight of the bunches is checked, so spears (broken or unattractive) can be removed from the silos. The weighing unit automatically refills the gaps until the target watch is reached. Machine-integrated cutter unit for recutting the asparagus to its selling size.

Scanner

• Harvest quantity recording for asparagus cutters and fields including accounting system
• Code recording takes place without delay during sorting

Cut-off conveyor

• Cut-off conveyors dispose of your asparagus residues in large containers or, according to your requirements, system-orientated and individually.
• Also available: Ascending conveyor up to 6.50 m length, and horizontal conveyor up to 20 m length.

Box conveyor

• Transports your finished product from the machine to the cold storage house or the removal point.
• Standard widths: 42 cm, 52 cm, 62 cm or acc. to customer's individual wishes.

Roller conveyors and roller conveyor scales

• Roller conveyors optimise the flow of goods, saving time, costs and space.
• The integrated scales and the flexible, easy-to-handle roller conveyors provide a logistical all-round solution.

Additional information

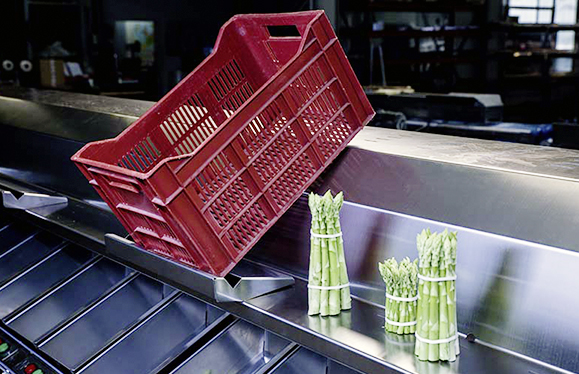

Removal tub for asparagus

• Easier asparagus removal from the field boxes; faster laying on the sorting machine
• Stainless steel tub for boxes up to 60 x 40 cm
• Two intake rollers combined with a 1.2 m long conveyor roller.
• With water level regulation and height-adjustable stainless steel feet
• Overall length: 2.88 m

Bundling aid for asparagus

• simplifies and speeds up manual bundling: Place the bundle of asparagus in the funnel and pull rubber over
• Stainless steel funnel, high-quality, stainless and durable
• easy to set up anywhere

Asparagus bundling machine

• Fast, efficient bundling with the ASPAPACK automatic bundling machine
• Bunch sizes adjustable to your requirements
• Asparagus transport without binding stop
• Two ADT binders tie the bunches using elastic yarn

Additional information

Stainless steel round table

• automatic buffer silo for asparagus for use behind an asparagus bundling machine
• After storing a bundle, the table automatically moves one position ahead so there is no pile-up
• Diameter: 148 cm
• Rotation speed: 2.3 rotations per minute
• Height: 77 - 89 cm
• Load capacity: 50 kg

Stainless steel packing table

• With tray for asparagus boxes
• integrated scales
• Foil holder
• Height-adjustable feet
• Height-adjustable lower tray
