New: Perfect sorting using LED light

Photographing every spear is the basis for perfect sorting. A high-resolution camera combined with LED flash optimises this process and significantly improves the evaluation and sorting of the asparagus.

This is how the ESPASO SEC works

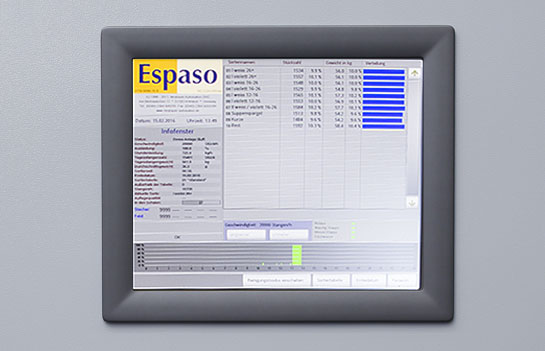

Data evaluation

Data evaluation: Automatic asparagus sorting machine

Every ESPASO is supplied with our special software which is developed in-house. It is comprehensive, well-engineered and easy to use so that you can concentrate on your asparagus harvest and not on studying complex software processes.

  • Easy operation, touch screen menu navigation
  • Sophisticated diagnostic software
  • Network-compatible
  • Open interface to standard commercial accounting programs or customer's own software
  • Code-entering takes place without time delay during on-going sorting via barcode scanner (accounting with Espaso S12 is also possible).
  • Remote servicing and fault analysis via integrated internet connection
  • Changes to sorting parameters while machine is operating via the internet

Sorting characteristics

The automatic asparagus sorting machine sorts according to these criteria

The Espaso software evaluates white and green asparagus according to various characteristics. In this way, the asparagus spears can be sorted exactly according to your specifications, and you can be certain: Only the best get through!

  • Length, stretched length
  • Thickness, difference in thickness
  • Weight
  • Curvature, S-curvature, head curvature
  • Violet colouring, green colouring, rust, rust on the head
  • Bloom, green asparagus bloom, white marks on the green asparagus foot
  • Areas of rot
  • White feet (on green asparagus)
  • Ovality
  • Double spears
  • Breaks, grooves
  • Cut quality

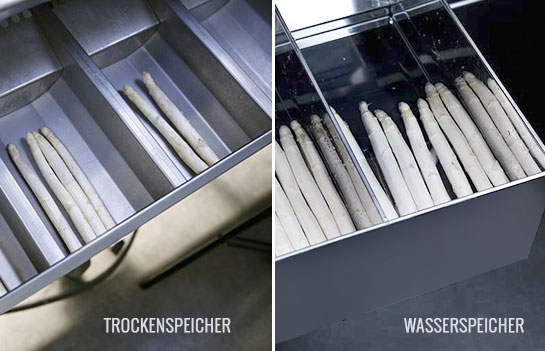

The asparagus silos

Asparagus silo of an automatic asparagus sorting machine

Next to quality, flexibility is another of the ESPASO's strengths. This continues with the choice of the asparagus silo compartments. Whether water or dry silo, single-sided or double-sided: And during asparagus removal, Neubauer Automation concentrates on what is most important: Your ideas and wishes.

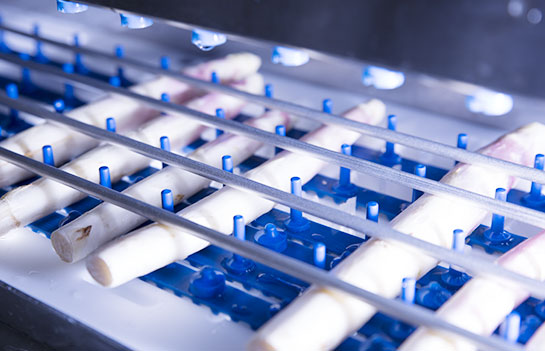

Washing and cutting

Asparagus washing and cutting

A newly-designed cleaning system washes all sides of the asparagus. Rotating under-brushes turn the individual spears. Powerful jets of water give optimal washing results. Fresh water jets complete final cleaning.
